Print your own labels
on MrLabel® MR545 template

How to fill in the Layout Settings

The following settings will help you adjust the layout of labels on the MrLabel® MR545 template.
You can adjust the first three settings to better meet your printing needs. The next three will help you compensate for some of the print misalignment issues you may encounter. Read this comprehensive guide to learn how to diagnose and fix any print alignment issue.

These same settings apply whether you're uploading label design files from your computer (using the upload button above) or printing MrLabel® MR545 labels using the Hlabels.com Label Sheets App for Canva, the Adobe Express Add-on, or the Google Docs™ and Sheets™ Add-on.
Find more info about each setting below.

• Labels to skip
  This setting is useful if you are reusing a label sheet where you have already printed and peeled off a number of labels, and now want to print on the remaining ones - helping you avoid wasting the entire sheet. Because MrLabel® MR545 template contains 12 labels, the maximum possible value for this field is 11. Set this field to the number of labels that have already been used and need to be skipped in this printout.
• Labels to print
  The number of labels that will be printed depends on the value you set in this field, as well as the number of label images you upload. If the value you set here is smaller than the number of uploaded images, it will be ignored, and the printout will include at least one label for each uploaded image. If the first label sheet runs out of available labels, the remaining images will be printed on additional sheets (second, third, and so on).
• Page orientation
  If you want your label images to be inserted vertically (i.e., rotated -90 degrees) into each label, there's no need to rotate them manually before uploading. Just set this field to "Landscape", and the system will automatically rotate them and generate the label sheet printout accordingly.
  Note that because MrLabel® MR545 labels are circle-shaped, adjusting this setting may not be necessary or useful.
• Bleed area
  When your label background isn't white, slight misalignments during printing can cause a thin white edge to appear along one or more sides. A simple and effective way to avoid this is to print the label image slightly larger than the label area, so the background extends beyond the label's actual edge. This method is called applying a bleed.
  If you notice white edges, select a bleed area between 1% and 5%, depending on how much coverage you need.
• Vertical offset
  Inkjet and laser printers don't always feed paper with perfect vertical precision, which can cause labels to print slightly higher or lower than intended on the sheet. This setting allows you to apply a vertical offset of 1 to 3 mm to compensate for small shift-type misalignments.
• Horizontal offset
  When the paper sheet sits a little to the left or right in the tray, labels can print off-center. This setting lets you apply a horizontal offset of 1 to 3 mm to compensate for small shift-type misalignments.

Note that the last three settings offer a quick, convenient fix for moderate misalignments. Whenever possible, it's best to identify the cause and apply a permanent solution.

Return to Layout Settings ↩

How to ensure your design fits the label

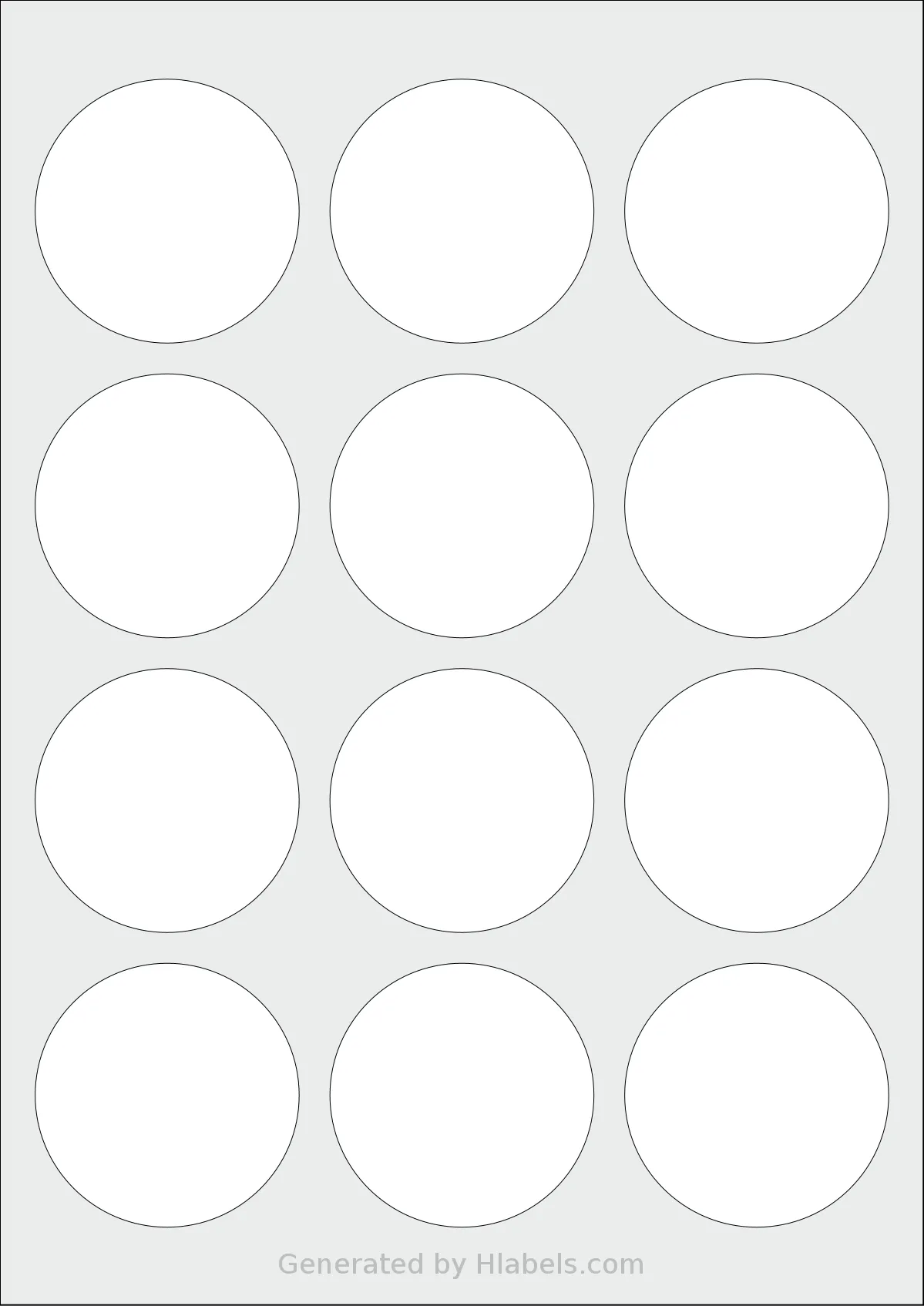

Each MrLabel® MR545 label is 60.0 millimeters wide and 60.0 millimeters high. To make sure your design fits properly within this label area:

1. Match the aspect ratio
   To avoid empty space around the printed label, make sure your design's width-to-height ratio is equal to, or closely matches, that of the label, which is 1.0 (60.0 divided by 60.0).
2. Mind the resolution
   To avoid blurry or pixelated printouts, generate your design’s image file at 300 DPI and never below 150 DPI.
3. Mind the pixel dimensions
   To ensure that your design fills the label's 60.0 millimeters height, the image should be at least 708 pixels tall at 300 DPI (or 354 pixels high at 150 DPI). The same logic applies to the width - if you keep the label's aspect ratio, the width will automatically scale correctly.

Note that Hlabels won't enlarge small images to fill the label space, as this could result in pixelation or blurry printouts. However, if your images are too large, Hlabels will reduce their size to avoid generating an unnecessarily large printout file.

Explore label templates with matching sizes

If you don’t have MrLabel® MR545 label sheets but still need to print labels in this size (diamenter 60mm), this list shows all label templates from the 64 label brands we support that match the exact same label dimensions. This helps you quickly find alternatives that fit your preferences, budget, delivery time, and more.

Avery® : Avery® 60 | Avery® 60-RND | Avery® L3416 | Avery® L7106 | Avery® Zweckform 60 | Avery® Zweckform 60-RND | Avery® Zweckform 60R6   Herma® : Herma® 4477   OnlineLabels® : EU30065   AALabels® : AALabels® AAC012   LabelPlanet® : LP12-60R   Apli® : Apli® 01244   TownStix® : A4-Round-12   Megastar® : LP4MS-60   WatsonLabel® : LL060060 | LL061061   Flexilabels® : FC12

Note that we do not sell label sheets and have no affiliation with any label manufacturers or brands mentioned. All trademarks are the property of their respective owners.
